Electric smokehouse of cold smoking from the barrel


Cold smoked smokehouse


Door marking


First you need to bring the barrel in the appropriate form. For this we will wash it and clean it of everything superfluous. You can burn the barrel burner, and then clean the brush on the metal.
Electric smokehouse of cold smoking from the barrel

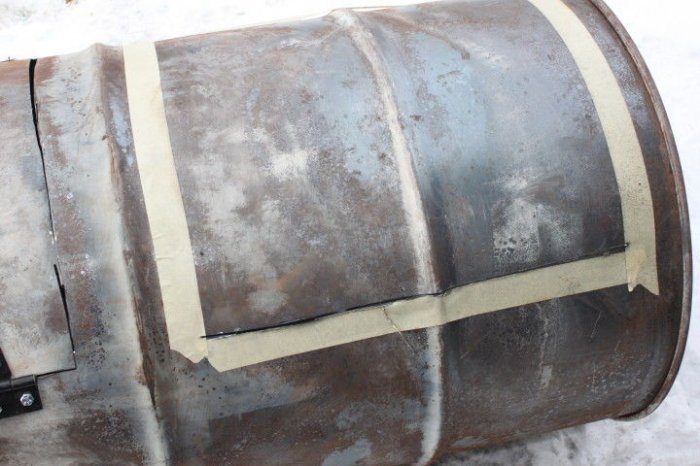

Next, paint the tape where there will be doors. I'll make two doors. One big one at the top is for products, and the other one is small at the very bottom - for sawdust and coal removal.
Electric smokehouse of cold smoking from the barrel

Electric smokehouse of cold smoking from the barrel

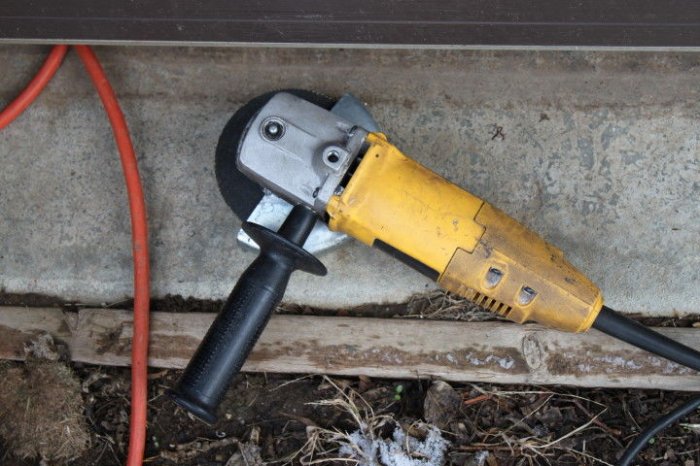

I will cut the grinder.
Electric smokehouse of cold smoking from the barrel

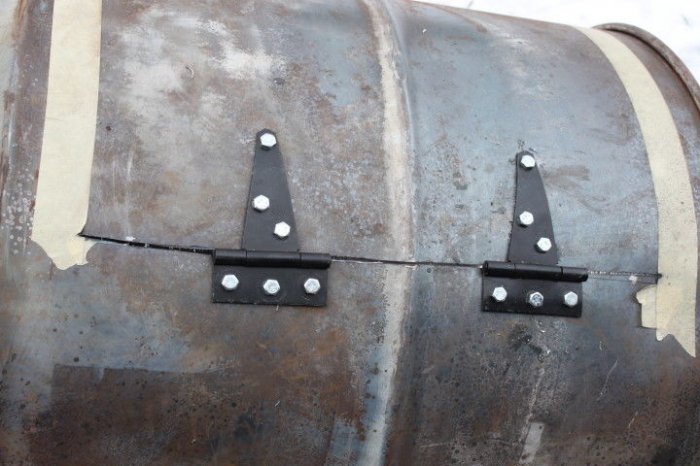

But there is a trick, how to make it easier. To do this, make a slot on the left side of the future door. Then we drill and we twist the loops.
Electric smokehouse of cold smoking from the barrel

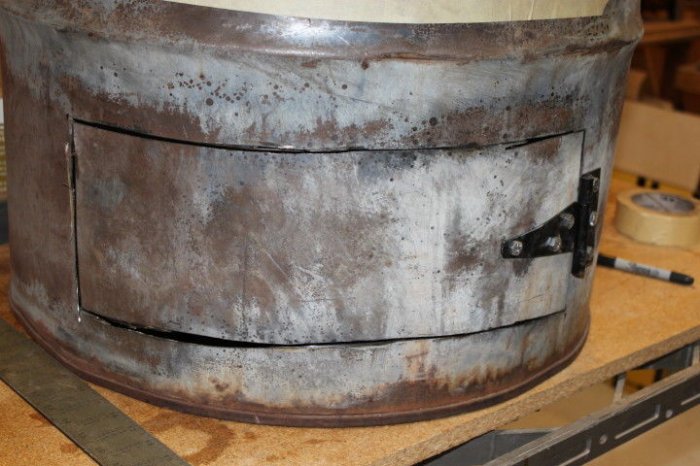

And after that we saw through the rest of the door. As a result, you will get a clearly hung door, exactly in the middle.
Electric smokehouse of cold smoking from the barrel

Everything opens perfectly.
Electric smokehouse of cold smoking from the barrel

Installation of damper and chimney

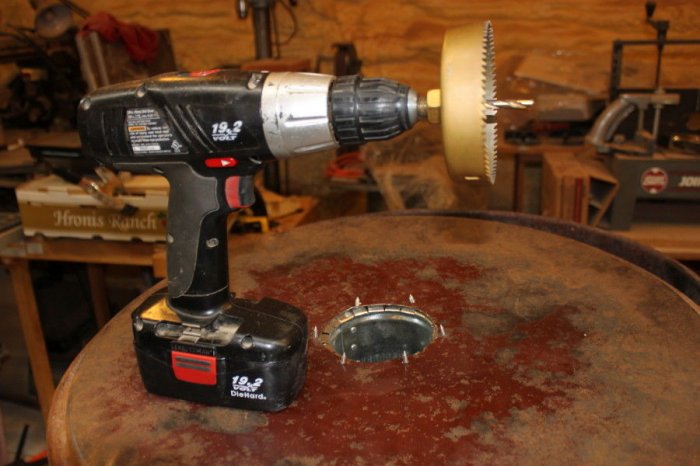

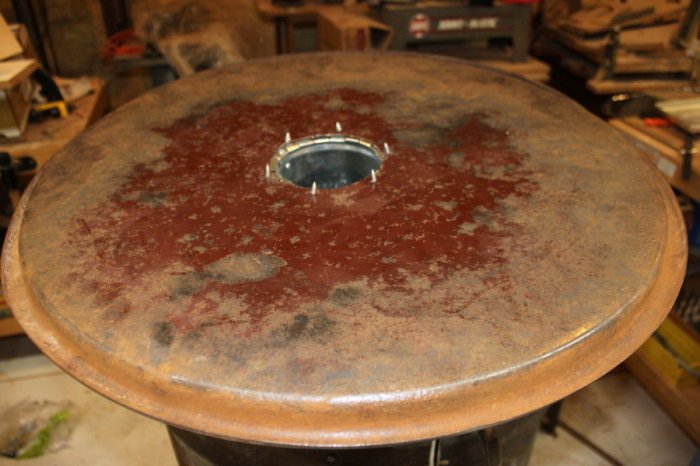

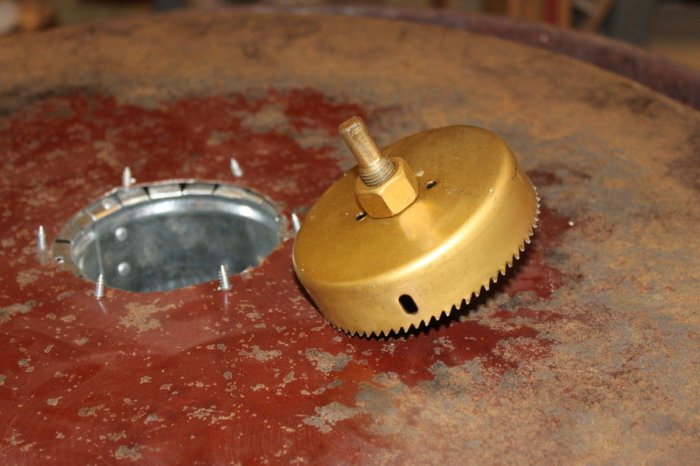

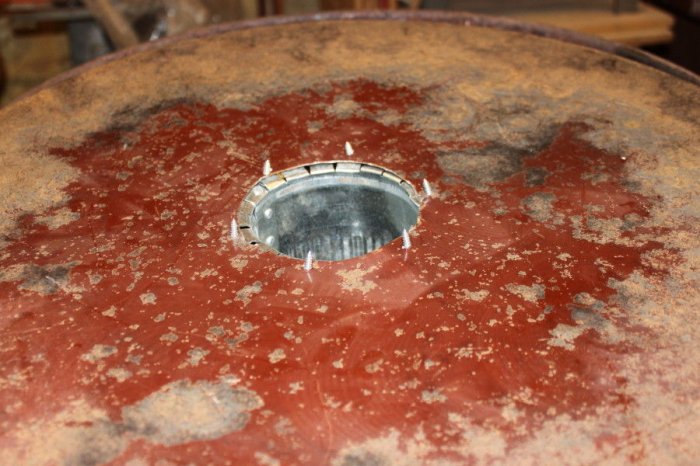

We drill a hole in the top of the future smokehouse.
Electric smokehouse of cold smoking from the barrel

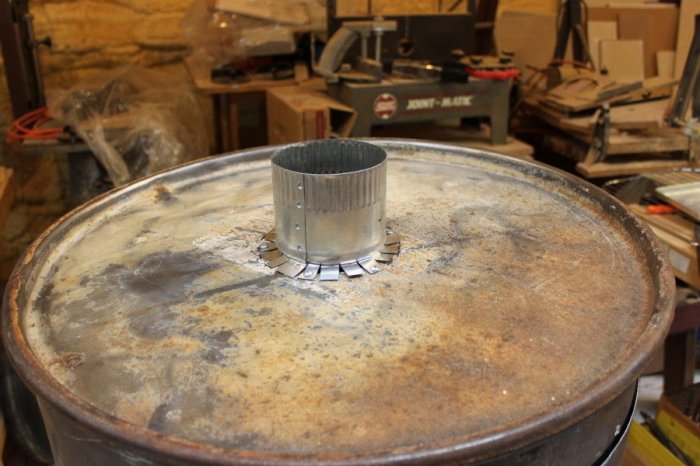

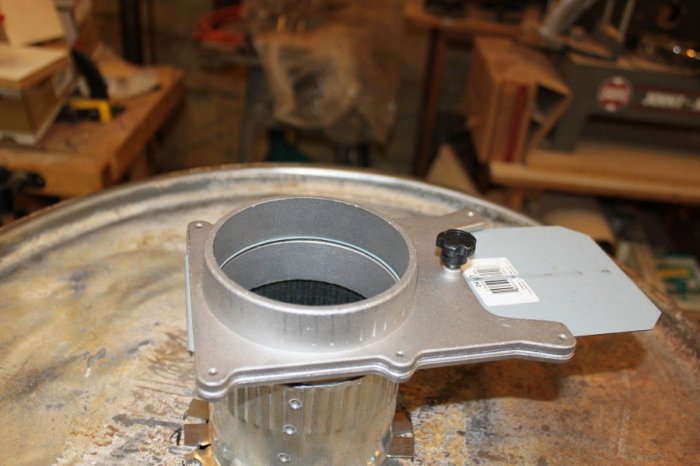

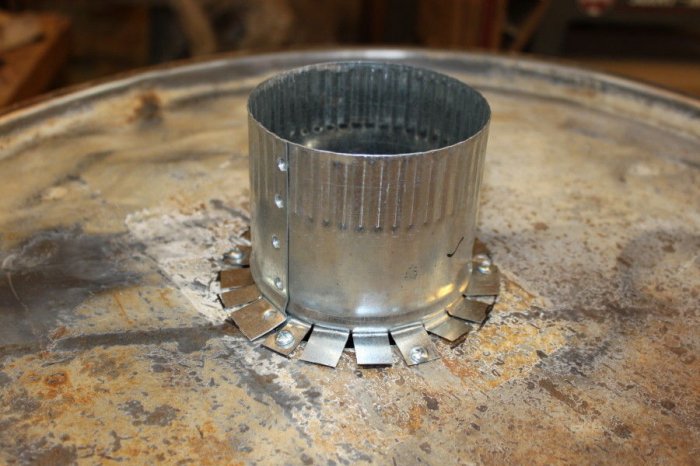

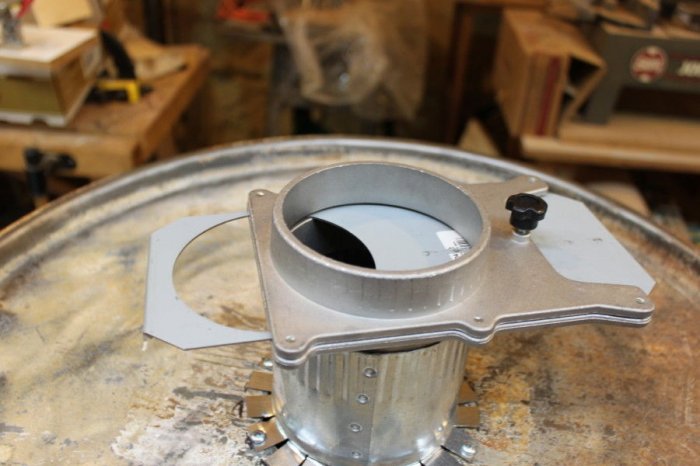

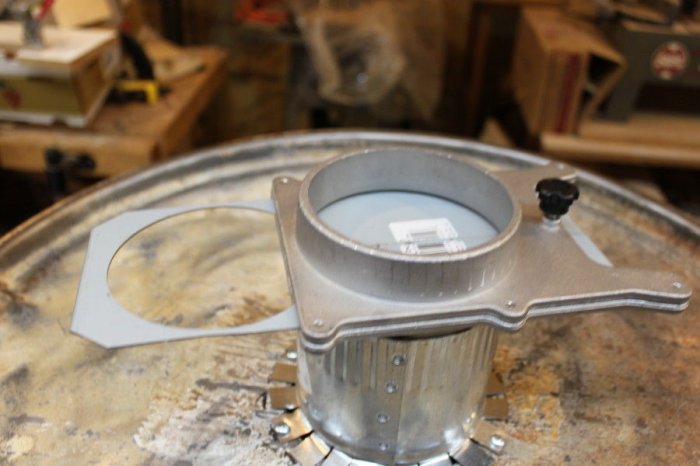

We turn the chimney with the damper. The barrel cover is removed and therefore there is no problem to show you everything.
Electric smokehouse of cold smoking from the barrel

Electric smokehouse of cold smoking from the barrel

Electric smokehouse of cold smoking from the barrel

Electric smokehouse of cold smoking from the barrel

Electric smokehouse of cold smoking from the barrel

The damper and chimney can be easily bought in the store of boilers and stoves. There are many choices of different diameters.
Electric smokehouse of cold smoking from the barrel

Electric smokehouse of cold smoking from the barrel

Electric smokehouse of cold smoking from the barrel

Electric smokehouse of cold smoking from the barrel

The chimney pipe looks very beautiful.

Magnetic Velcro Metal Seals


In order to close the gap between the hull and the door you need to make seals.

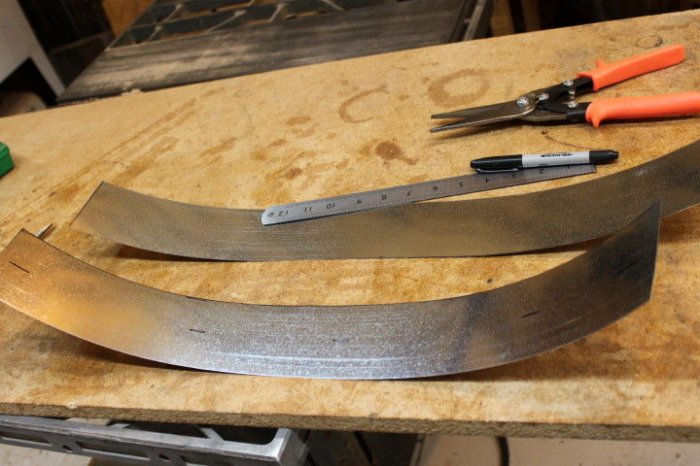

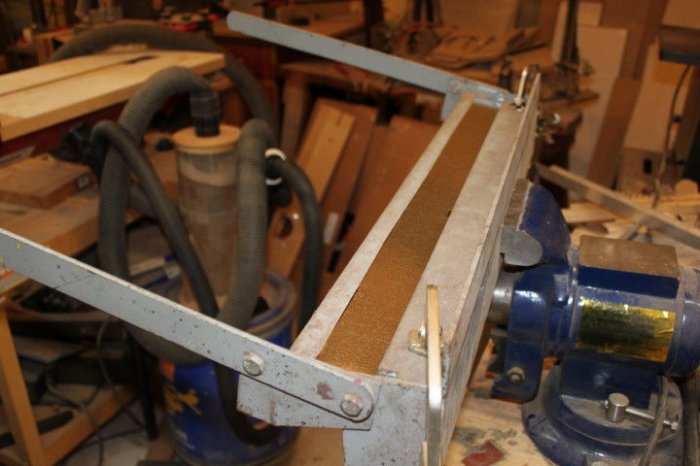

It will take a thin metal. We mark and cut out.
Electric smokehouse of cold smoking from the barrel

Electric smokehouse of cold smoking from the barrel

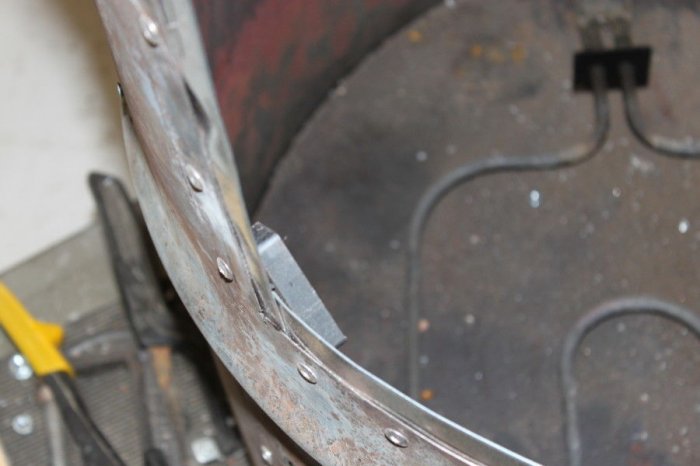

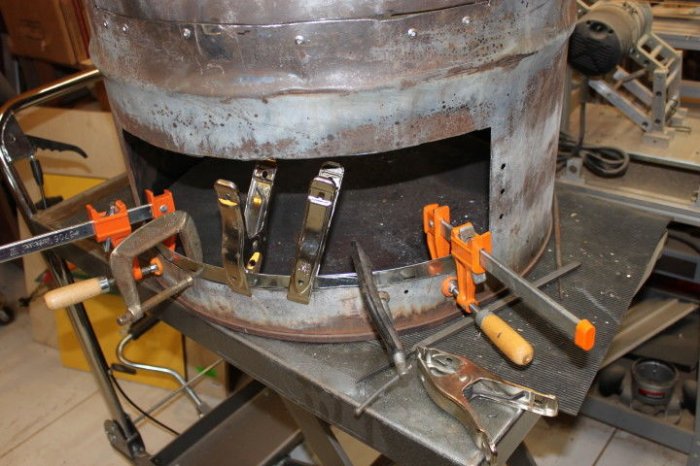

Fix temporarily.
Electric smokehouse of cold smoking from the barrel

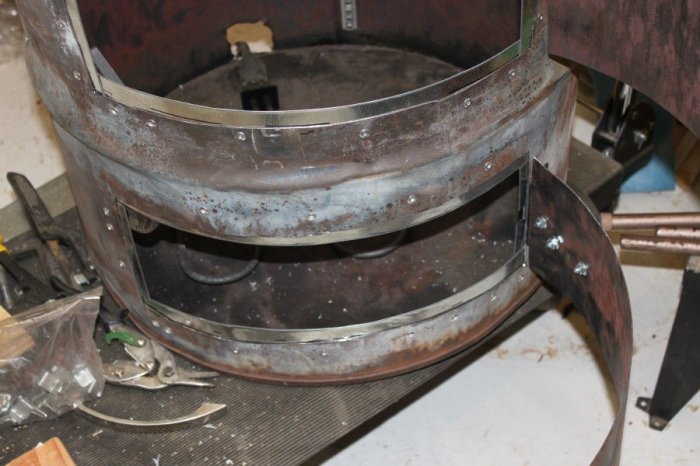

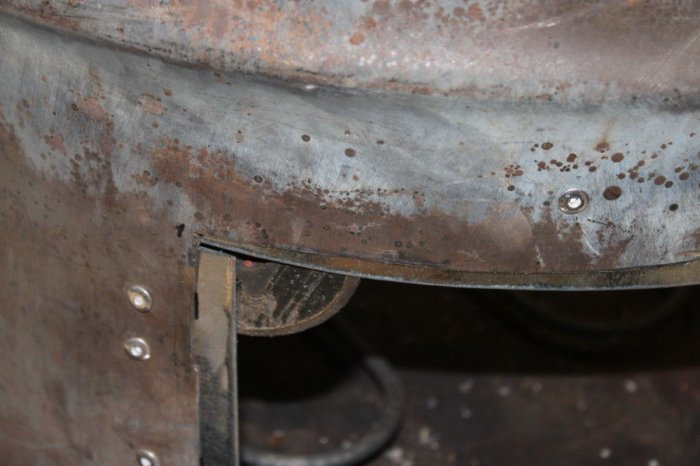

We drill holes and fasten with rivets or screws and nuts.
Electric smokehouse of cold smoking from the barrel

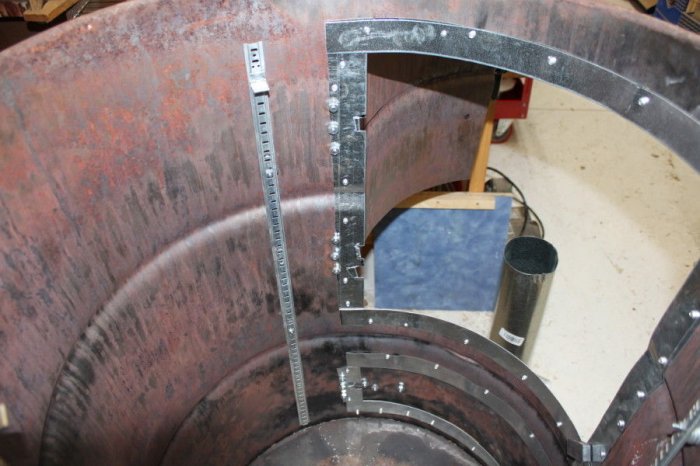

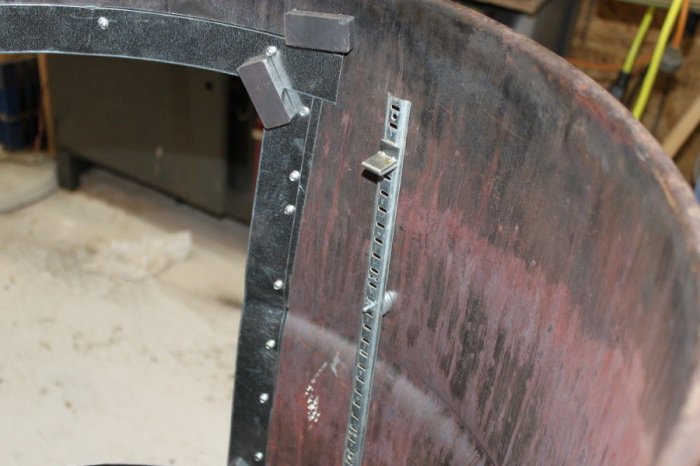

We also attach the guide racks, on which the grates with the products inside will lie.
Doors will be protected from accidental opening magnets. To do this, install any magnets that you have on the farm in the corners.
Electric smokehouse of cold smoking from the barrel

Electric smokehouse of cold smoking from the barrel

Electric smokehouse of cold smoking from the barrel

Electric smokehouse of cold smoking from the barrel

Now the closed door will hold securely and will not open due to wind or vibration.

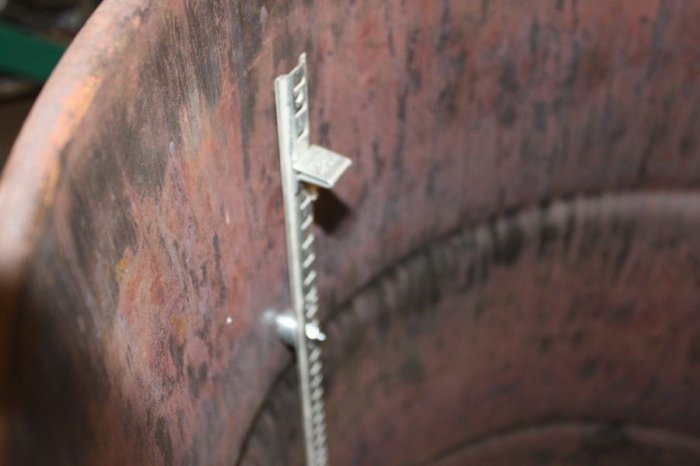

The bracket for the rack looks like this:
Electric smokehouse of cold smoking from the barrel

Mounted at a short distance, given the diameter of the grill from under the barbecue.
Electric smokehouse of cold smoking from the barrel

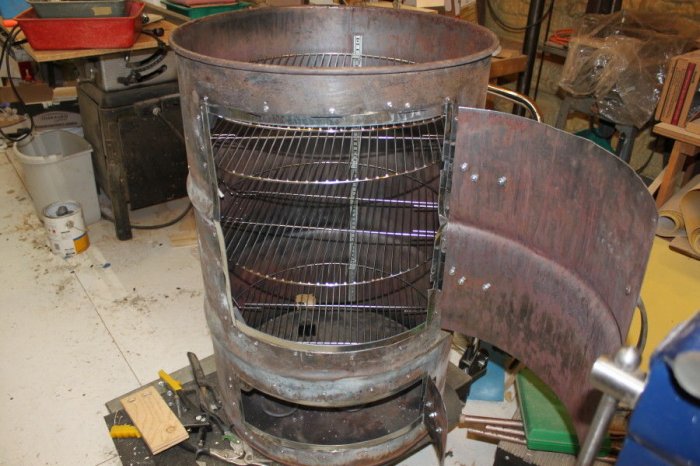

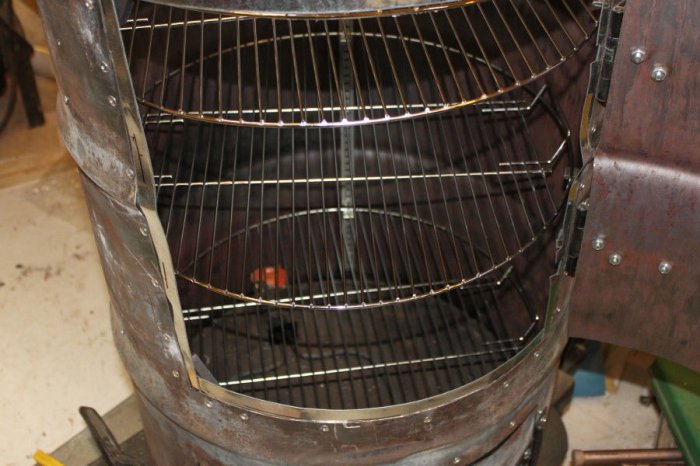

Try on the lattice.
Electric smokehouse of cold smoking from the barrel

We make several projections under a different distance.
Electric smokehouse of cold smoking from the barrel

Electric smokehouse of cold smoking from the barrel

Electric smokehouse of cold smoking from the barrel

If you fail to find such gratings in the store, you can make them yourself by cutting the circle with a grinder from an elastic metal mesh. Or weave from the wire itself.
Electric smokehouse of cold smoking from the barrel

Electric smokehouse of cold smoking from the barrel

Electric smokehouse of cold smoking from the barrel

Exterior finish


Painted the entire smokehouse heat-resistant paint, such paint the exhaust pipes and collectors of cars.
Electric smokehouse of cold smoking from the barrel

Electric smokehouse of cold smoking from the barrel

Above the hole drilled to install a thermocouple, so that the electronics can track the temperature.
Electric smokehouse of cold smoking from the barrel

The thermocouple itself:
Electric smokehouse of cold smoking from the barrel

The very element itself is very small, and this metal massive body is made by me.
Electric smokehouse of cold smoking from the barrel

The whole set of electronics for the management of smokehouses, namely its heating element. I bought everything here - Ali Express.
It will take:
  • PID regulator.
  • Thermocouple.
  • Solid state relay.
  • Radiator for solid state relay.

All this can be bought in the set of course, as I did.
Electric smokehouse of cold smoking from the barrel

Electric smokehouse of cold smoking from the barrel

Electric smokehouse of cold smoking from the barrel

I installed an additional thermometer in the oven. Look for HERE.
Electric smokehouse of cold smoking from the barrel

Tightened the handle for the door.
Electric smokehouse of cold smoking from the barrel

TEN is installed at the very bottom, though I have not really fixed it yet.
Electric smokehouse of cold smoking from the barrel

And this is a sawdust tray and modern pressed briquettes for oil smokers.
Electric smokehouse of cold smoking from the barrel

Electric smokehouse of cold smoking from the barrel

Smokehouse


All smokehouse is installed on a wooden stand.
Electric smokehouse of cold smoking from the barrel

On the bottom shelf there is electronics.
Electric smokehouse of cold smoking from the barrel

Electric smokehouse of cold smoking from the barrel

Smokehouse is ready. The costs, in my opinion, are minimal, for such a device.
