The "Kalina" does not include a back gear: the reasons
Motorists often face a situation,when the "Kalina" does not turn on the rear gear. The reasons for this problem often can not be determined even at the SRT. But if you look at the service manual and read the information on this car, you can find out what is the reason and how to fix this problem.
In fact, this problem is eliminatedquite simply. There is no need for major repairs requiring the dismantling of the checkpoint (except in certain cases). Most often the whole fault is an electronic lock, wiring and a fuse.
This is the very first reason. To not include the rear speed often leads to the wear of the nodes - the transmission will not be included at all or it is knocked out on the go. The first thing you should pay attention to is oil. With the loss of physical and chemical properties, its viscosity varies considerably. This may cause the gears to jam. The mechanism of the box will work, but with the inclusion of certain speeds, certain difficulties may arise.The second reason, related to the gearbox mechanism, is the natural wear of the internal elements of the transmission. So, if the rear gear does not turn on at Kalina, then the "suspects" are several:
- Gear reverse gear.
- Releaser bearing.
- Plug for inclusion.
The box is opened, the defect is carried out, the worn part is replaced. After that, the mechanism of the checkpoint should work properly.
Another popular reason for this problemis the grip. Diagnosing this problem is quite easy. At the time of releasing the pedal, the transmission will not go in, or turn on with a characteristic crunch. This does not mean a breakdown in the back gear of "Lada Kalina" - this is a coupling defect.
So, it is worth paying attention to the squeeze bearing, as well as to the disk. In case of significant production, these parts should be replaced.
This is the last failure, because of whichTurned back on the "Lada Kalina". The car has an electronic reverse gear. This system is very useful, but it often fails. Why does this happen? Sometimes the fuse blows. In the shoe he is numbered F21. Also check the transmission connector under the car's hood.
The fuse is easy to find - it is in the block (the eighth on the left). It is recommended to check for extraction. Checking is better with a multimeter.

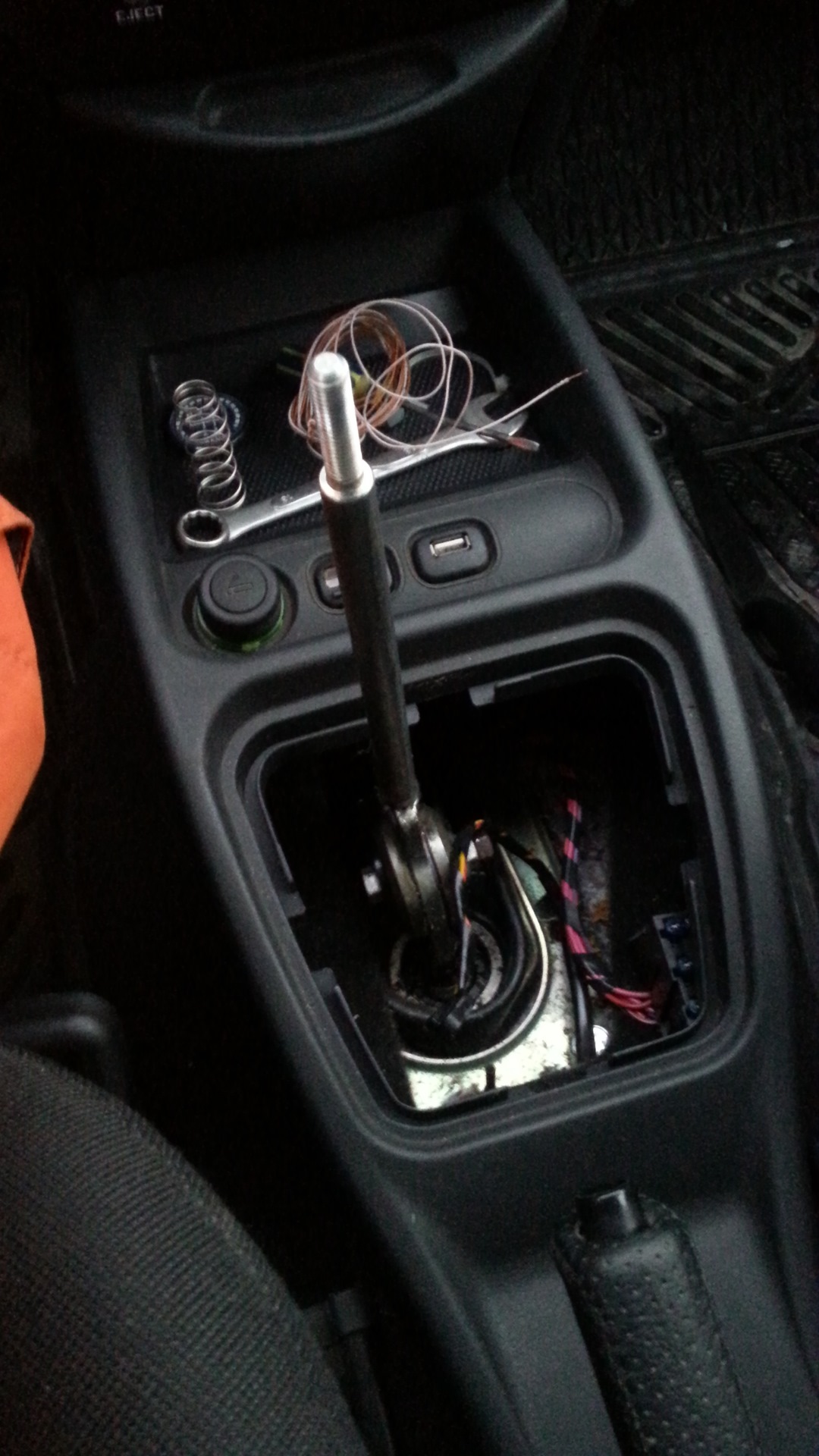

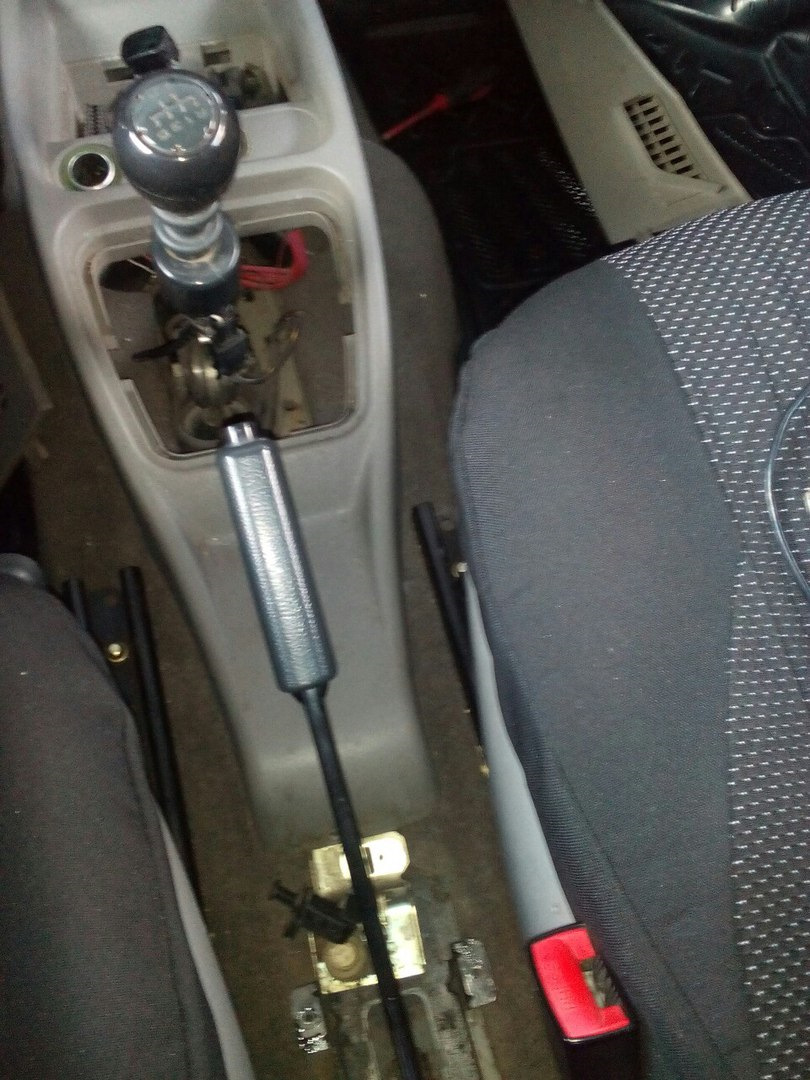

When the fuse is fully functional,the plug is OK, and the "Kalina" does not turn on the rear gear, the switch under the decorative cover near the gearshift lever itself is looking. Two wires are connected to this switch. They are closed to each other. If the transmission starts to turn on normally, then the reason was exactly in the switch.You can measure the voltage on the wires with the help ofneedles. The switch must be at least 12 V. If there is no multimeter, you can measure the voltage using a light bulb. If it does not burn, this indicates a broken wire. Usually this happens in the place where the clamp on the pallet is installed. This easily explains the question: why does not the back gear on Lada Kalina turn on.
The clamp is removed and compressed at the bottom of the fastener. Then disconnect the lamp switch connector. Then they take out the whole bundle. The broken wire will be visible right away. What to do next? The cord is connected with a piece of good wire - you can make a simple twist.But the best way is to dissolve the connection. Then everything is collected in the reverse order. If the transmission turns on, the problem is solved.
This is the last reason, because of which the "Kalina"the rear gear does not turn on. It is connected with a solenoid. To test it, it is better to use a multimeter. But if it is not there, pins are inserted into the hole for the current supply. The presence of voltage is checked with a conventional 12-volt light bulb.
Experts argue that the problem can bewin with a key "at 22". The system of blocking the inclusion of the rear speed on the "Kalina" is realized with the help of this solenoid. Power is fed to it using a switch in the form of a ring on the gearbox selector. When the ring rises, the solenoid rod is pulled in and the lock is turned off. Together with this, an appropriate limit switch is triggered, which includes reversing lamps and a "buzzer" in the cabin.Through the fuse on the solenoid from the battery comes 12 V. With the switch located on the selector, a short to the ground. Then the coil on the solenoid is triggered.
How to repair the solenoid?
When the "Kalina" does not turn on the rear gear,you can try to restore the solenoid. Where is he located? If you turn the steering wheel to the right and then look under the car from the left wheel, you can see the solenoid. He is at the checkpoint. Connector and wires are connected to the solenoid. The connector is removed, and the key "for 22" is twisted off the solenoid by approximately eight millimeters.In the resulting gap, the wire is wound up orinsulating tape. Then again tighten the solenoid. Then you can try to include the rear gear. When driving on a car, you should be as careful as possible - the first gear is next door.
Note!If the solenoid is replaced, the oil must be replacedin the transmission. But if you have time to plug the hole, it will be enough just to add the right amount of lubricating fluid. Specialists recommend the use of Total Transfer oil with a viscosity of 75W80. The required volume is 2.2 liters for the box 2180 and 3.3 liters for 2181 (with a cable drive).
If the checks did not lead to anything
It also happens that the diagnosis did not give anything - none of the reasons described is not suitable. In this case, there are three possible options:
- The gear selection mechanism is out of order.
- The fixing bolt was cut.
- The spring has burst.
The most terrible thing in this situation is that any of these reasons requires the removal of the box. This is already a very serious repair, which by force is not all.
These are all reasons why the backtransfer to the "Kalina". The first thing to do is to diagnose the electrician, the switch, and also the solenoid. Then they are already moving to the dismantling and dismantling of the gearbox and clutch mechanism with the replacement of all worn out parts.
